Patiant monitor contec cms8000
Type/Size
Quantity nos
Price
Introduction

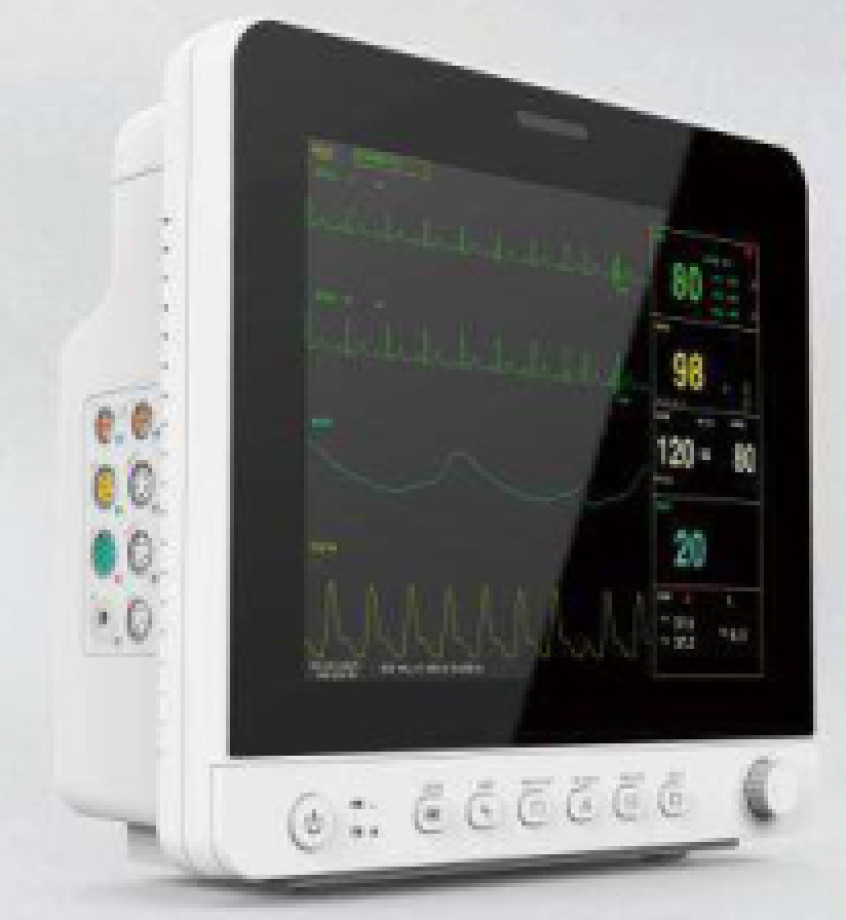

The monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter configuration according to different requirements. The monitor, power supplied by 100-240V～,50/60Hz, adopts 12.1'' color TFT LCD displaying real-time date and waveform. It can synchronously display eight-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder.
This device can monitor such parameters as ECG, RESP, NIBP, SpO2, and dual-channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. Its replaceable internal battery brings lot of convenient for patient moving.
Functions
- Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP
- ECG Heart rate(HR)
ECG waveform
Arrhythmia and ST-segment analysis
- RESP Respiration rate(RR)
Respiration waveform
- SpO2 Oxygen saturation(SpO2)
Plethysmogram(PLETH) waveform
Pulse rate(PR)
Bar graph
- NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)
- TEMP T1, T2, TD
- IBP(optional) CH1：SYS，DIA，MAP
CH2：SYS，DIA，MAP
IBP waveform
- CO2(optional) EtCO2
InsCO2:Inspired Minimum CO2
AwRR:Air Way Respiration
- It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation, etc.
